Galvanised Steel Wire, Coil Wire and Spool Wire

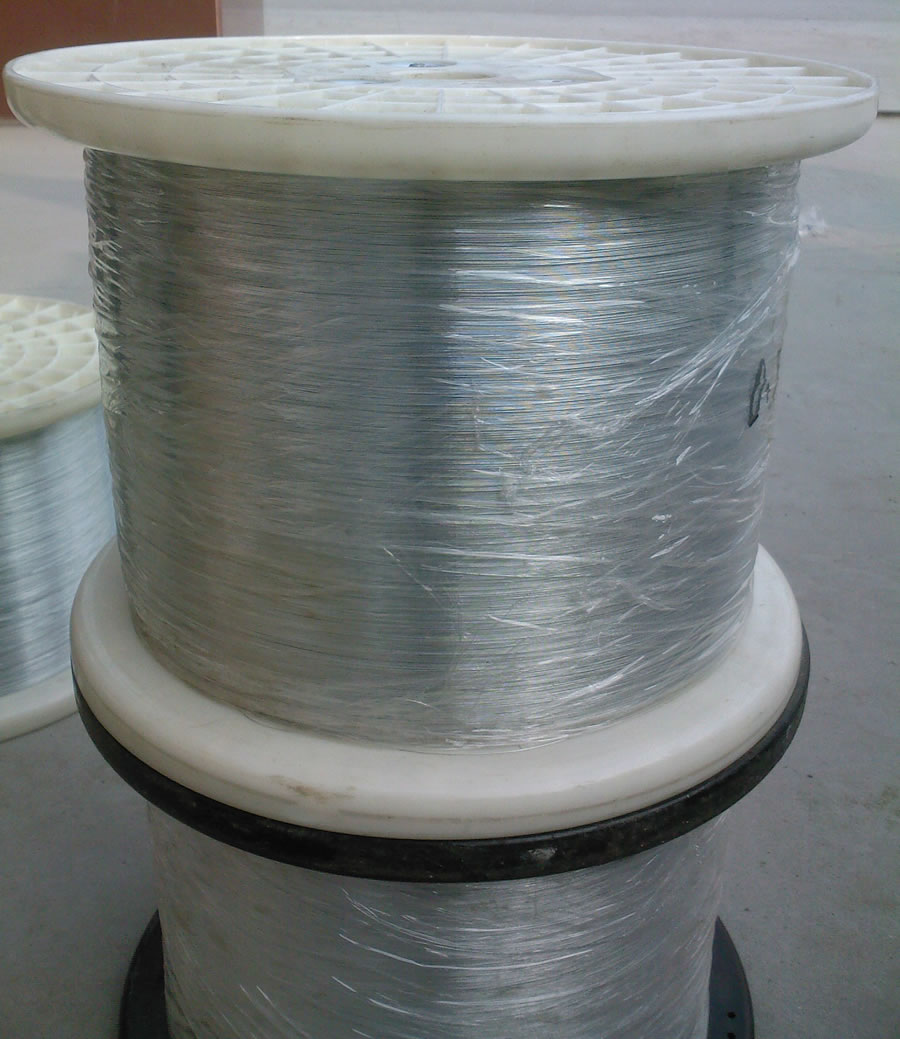

Galvanized Spool WireGalvanized Steel Spool Wire

Galvanised wire also called galvanized wire, galvanised iron wire. Galvanised wire is a metal composite material that is made with superior low carbon steel or high carbon steel wire rod, though wire drawing, annealing, acid cleaning and galvanizing processes. With the features of being economical, soft, clean, easy to bind, the galvanised iron wire becomes the ideal building material in the World.

Low carbon steel galvanised wire: Made of wire material types including SAE1006, SAE1008, SAE1010, Q195, Q235, C45, C50, C55, C60, C65, etc.

High carbon galvanised steel wire: 45#, 60#, 65#, 70#, 42A, 62A, 72A, 72B, 82B, T9A, 65Mn

Ganvanised steel wire can be divided into two categories:
- electro galvanized iron wire 8#---38#(3.8mm,0.15mm)
- hot dipped galvanized iron wire 8# --36#(3.8mm,0.19mm)

Galvanized steel wire features:
The surface is smooth, bright and clean, there is no crack. The zinc coating is uniform, and has strong adhesion to the inner wire. The finished wire has good corrosion resistance and lasting strength, excellent toughness and elasticity.

Galvanised Steel Wire is mainly used for cultivation in greenhouses, cotton packing, farms, springs and wire rope manufacturing.

Galvanised Wire Packing: Spool or Coil.
- Wrapped with plastic cloth inside, plastic woven bag outside .
- Wrapped with plastic cloth inside, plastic hessian cloth outside,
- Specific packaging requests are also accommodated.

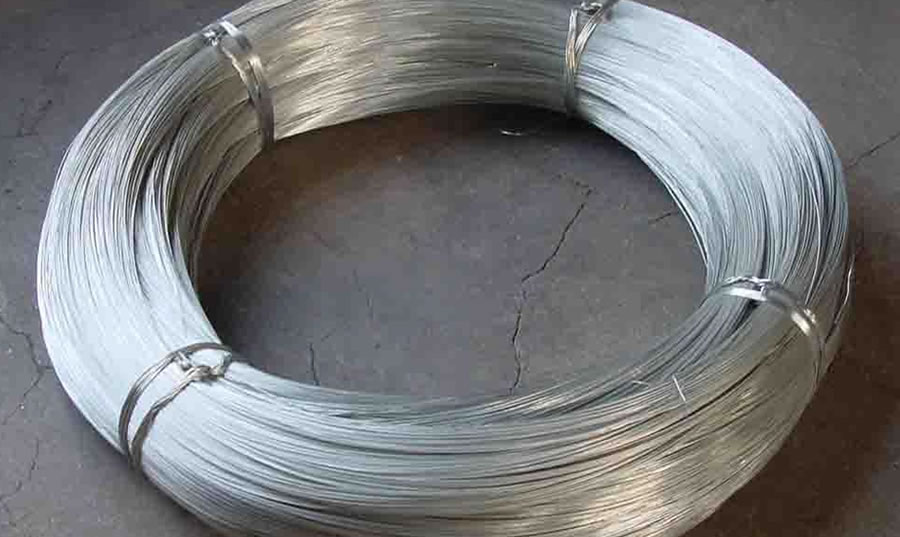

Hot Dipped Galvanised Wire

8# --36#(3.8mm,0.19mm)

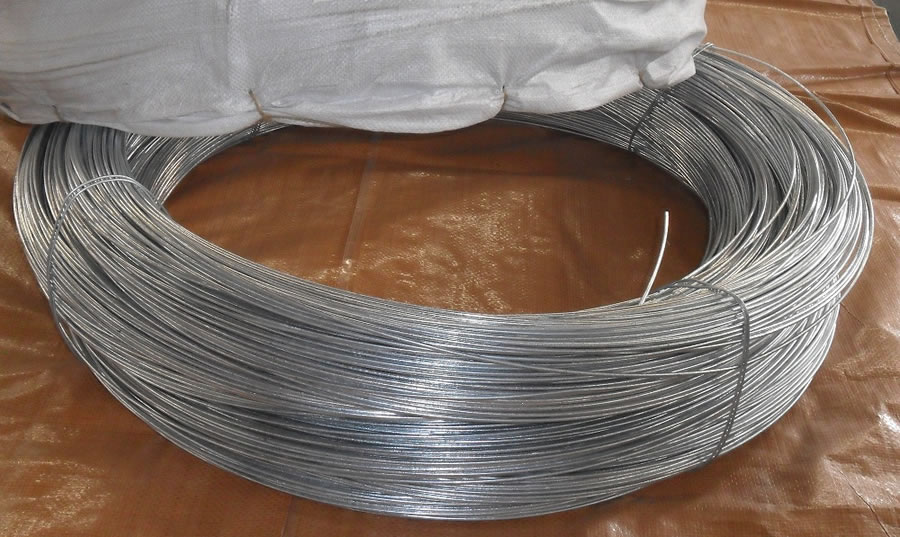

Electro Galvanised Wire

8#---38#(3.8mm,0.15mm)

Specifications of Galvanised Wire

Gauge SWG in mm BWG in mm metric mm Common weight/coil
8 # 4.06 4.19 4.00 50-100kgs
10# 3.25 3.40 3.50 50-100kgs
12# 2.64 2.77 2.80 50-100kgs
14# 2.03 2.11 50-100kgs
16# 1.63 1.65 1.65 50-100kgs
18# 1.22 1.25 1.20 5-25kgs
20# 0.91 0.89 0.90 5-25kgs
21# 0.81 0.813 0.80 5-25kgs
22# 0.71 0.711 0.70 5-25kgs



Nominal Diameter Tensile Strength Stress at 1% Elongation Twist Elongation Standard
mm Mpa Mpa Times/360°C Lo=250mm As per GB, EN, IEC, JIS, ASTM standard, as well as customer's request
1.24-2.25 ≥1340 ≥1170 ≥18 ≥3%
2.25-2.75 ≥1310 ≥1140 ≥16 ≥3%
2.75-3.00 ≥1310 ≥1140 ≥16 ≥3.5%
3.00-3.50 ≥1290 ≥1100 ≥14 ≥3.5%
3.50-4.25 ≥1290 ≥1100 ≥12 ≥4%
4.25-4.75 ≥1290 ≥1100 ≥12 ≥4%
4.75-5.50 ≥1290 ≥1100 ≥12 ≥4%

Specific Types of Products

Galvanized Iron Wire

Mesh wire for Galvanized chain link fence manufacture
For Serbia Market

Wire Diameter
Electric galvanized iron wire; Hot-Dipped Galvanized Iron Wire

1.20 mm ; 2.80 mm ; 2.50 mm ; 2.20 mm ; 2.10 mm ; 2.00 mm ; 1.95 mm ; 1.90 mm
1.85 mm ; 1.80 mm ; 1.75 mm ; 1.70 mm ; 1.65 mm ; 1.60 mm ; 1.40 mm.

High Tension Galvanized Steel Tension Wire

Surface Finish Hot Dipped Galvanized Electro Galvanized
Specification 0.15mm-6.0mm 0.28mm-5.0mm
Roll Diameter 30-50cm
Tensile Strength 300-1500N/mm2 300-1400N/mm2
Elongation >15% >15%
Zinc Coating 30-366g/m2 12-120g/m2
Package spool type or coil type

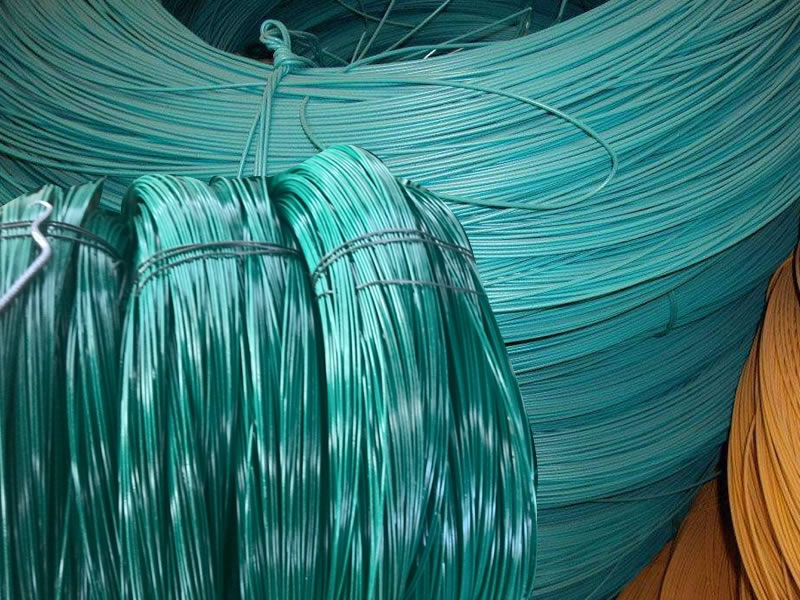

 PVC Coated Iron Wire

14 gauge galvanized pvc coated wire

For USA

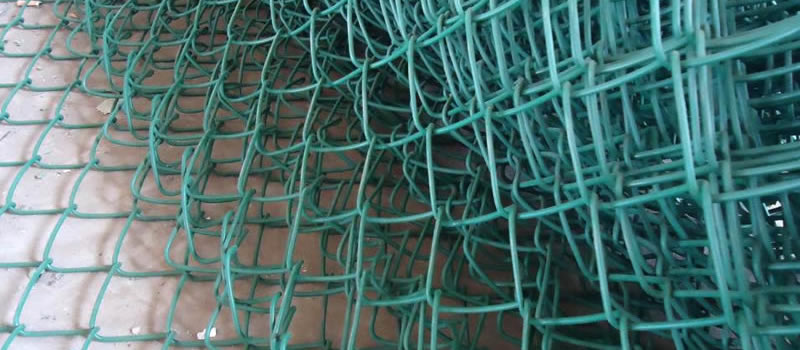

Mesh wire for pvc coated chain link fence.
Material: Plastic coated galvanized wire
Core wire: Electro galvanized iron wire.
Outside: Pvc coated in black or green color.
Gauge: 14 gau (2.2mm)

Application:

Diamond Mesh, Plastic Coated, Galvanized, for Fencing Uses
2”x4” pvc coated wire mesh, fence panels 36” and  48” width x 100’ length, coated in Black and Green.

Packing:

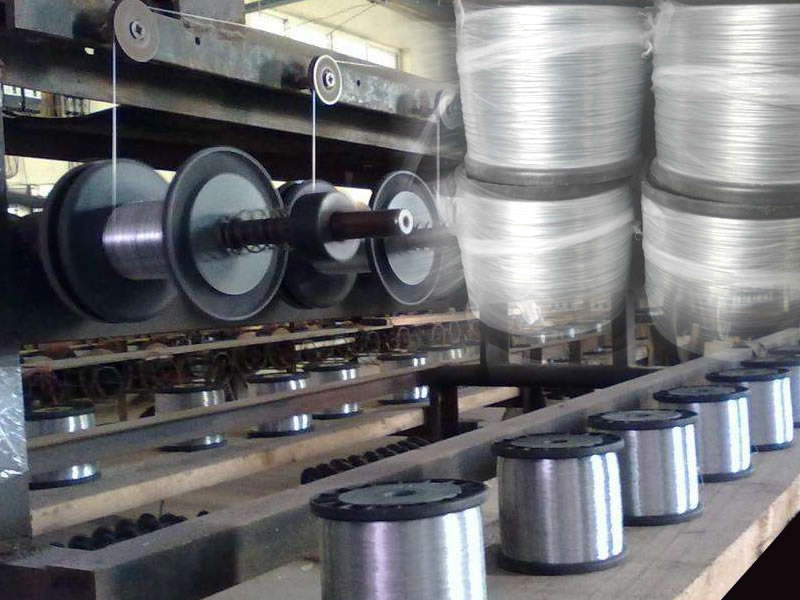

In bobbins or spools:

Electro galvanized wire in 0,8mm and 0,6mm in bobbins ( not coils) of 25 Kgs.

In rolls or coils: 5kg, 8kg, 10kg, 15kg, 20kg, 50kg, 100kg, 500kg, 1000kg.


Galvanized iron wire 22 gauge in 8 kg rolls.
