Anti Cut Through & Anti Climbing Fence

We supply and deliver Anti Climb Fence Panels, razor wire concertina, barbed wire, gates, posts and brackets. For a complete fencing system construction and installation. Panels are 358 meshes, pickets, razor meshes.

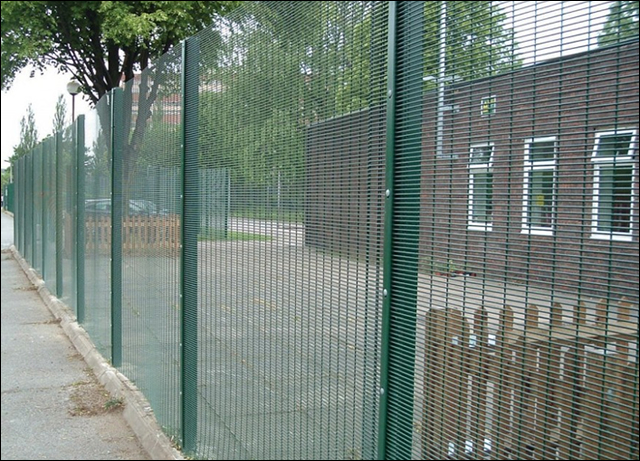

Non climb fencing panels are popularly made of 358 weld mesh structure. 358 anti climbing fence is extremely difficult to penetrate, with the small mesh aperture being effectively finger proof, and extremely difficult to cut through with conventional hand tools. '358' comes from its measurements 3" x 0.5" x 8 gauge, about 76.2mm x 12.7mm x 4mm in metric system.

High Security 358 Anti Climb Fence is the superior security fencing system when used with concertina wire coils and CCTV monitor system. Widely used for prison, airmport, sea port and various border security protection.

General Information of Supply :
Common wire thickness: 4mm
Hole size :76.2*12.7mm, 12.5x75mm
General panel width: 2.2m, 2.4m, 3m
Panel height: 1.8m, 2.1m, 2.4m, 3m
Post height : 2m, 2.3m, 2.5m, 2.7m, 3m, 3.6m
Post type: square fence post 60*60*2.0/2.5,80*80*2.0/3.0mm
Fitting: Flat bar, metal clips
Material: Carbon steel
Surface treatment: Electric galvanized, hot dipped galvanized, then powder coated; hot dipped galvanized
Color: Green, black, biege, others

Supply of Anti-Climbing Fence, Green PVC Powder Coated, GI Wire

Hot dipped galvanized anti climb fence weld mesh panel,green pvc coated for a service life about 25 years
Anti climb fence mesh panels, posts, metal clips and clamps, all to be hot dip galvanised then powder coating in green color RAL 6005, suitable for offshore area

Technical Details

Mesh Panel:
Panel size: 3000 mm height x 2515 mm width.
Material: ASTM A 641. Wire shall be steel and have class 3 zinc coating as specified in ASTM A 641 unless otherwise specified, wire shall have a tensile strength not less than 58,000 pounds per square inch.
Mesh pattern: 76.2 mm (3") * 12.7 mm (0.5") resistance welded well at each intersection with 1 'V' shaped beam.
Wire diameter: 4 mm horizontal wire and vertical Wire.
Weld strength: range 540 to 690 N/m2.
Surface treatment: Steel mesh fence panels made from hot dipped gi wire, then PVC powder coating (Min. 100 micron), or PVC powder painting.
Life span: With an additional powder coating protection, the metal fence is expected to have an increased potential life span to 25 years.
Color: Green RAL 6005

Fence posts:
Material: ASTM A 702 high grade steel tor maximum strength / rigidity. Steel fence posts and braces shall be made of high-grade steel for maximum strength and rigidity conforming to the requirements of ASTM A 702 far steel fence posts.
Post Section. 80 * 80 mm.
Post Plate thickness: 2.5 mm
Post Length: 3800 mm.
Base Plate: 10 mm Plate: 200 x 200 mm
Fimsh: inside and outside galvanized ( Min. 275 g/m2), subsequently covered with a polymer powder (Min. 60 micron).
Color: Green RAL 6005.
Post cap: metal caps
Metal clips and clamps are to be hot dip galvanized then powder coating in green color RAL 6005.

Anti-climb Fence Project Drawing Details
Anti-climb panels supplied in 2515mm wide x 3m high with razor blade wire for prison fencing

Material and fixing clamps: Interior / straight section
Material: ASTM A 702 - mm 80 * 80 * 2.5 SHS Clamps
Material mm 80 x 80 x 2.5 SHS Clamps NO. 10 {per straight section)
Made of high-grade steel for maximum strength and rigidity conforming to the requirements of ASTM A 702 for steel fence posts
Finish: inside and outside galvanized (Min . 275 g/m2), subsequently covered with a polymer powder (Min. 60 micron).
Metal clips and clamps are to be hot dip galvanized then powder coating in green color RAL 6005.

Material and fixing clamps: Exterior/corner section
ASTM A 702 - mm 80 * 80 * 2.5 SHS Clamps
Material mm 80 x 80 x 2.5 SHS Clamps No. 20 (per corner section)
Made of high-grade steel for maximum strength and rigidity conforming to the requirements of ASTM A 702 for steel fence posts
Finish: inside and outside galvanized (Min 275 g/m2), subsequently covered with a polymer powder (Min. 60 micron)
Metal clips and clamps are to be hot dip galvanized then powder coating in green color RAL 6005.

Inspection
All raw materials shall be tested.
All items listed shall be inspected at each stage of manufacture. A sample ot each manufacturing batch shall be made available tor inspector to determine it the required quality level as detailed has been met. The result of the inspection shall determine the acceptance or otherwise of the whole batch.

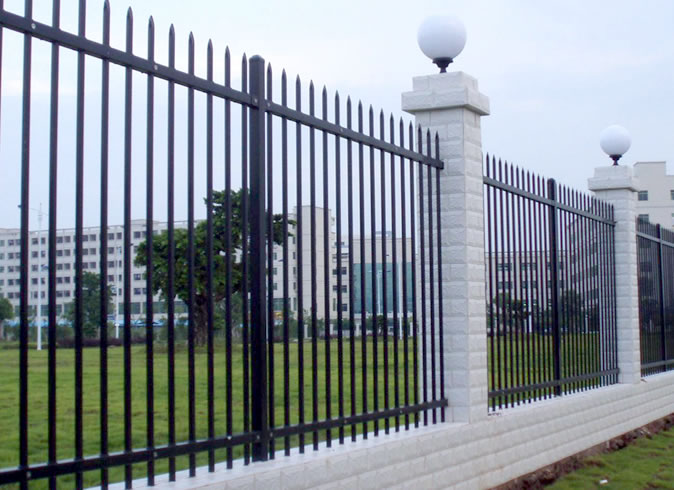

Security Anti Climb Steel Picket Fence

Wrought Iron Steel Picket Fence with Non Climbing Pointed Top

Fabricate and install 8' high of wrought iron fence.
Three sliding gates25 feet x 8 feet high and 12 feet long x 8 feet
Material to be used:
2"sq. 1/8" steel posts and gates frame
Posts to be set in concrete
1.1/2"sq. 1l gauge top and bottom rails
3/4"sq.16ga. vertical pickets (pressed pointed top)
4"max. space in between pickets.
All steel fence and gates to be primer and painted black

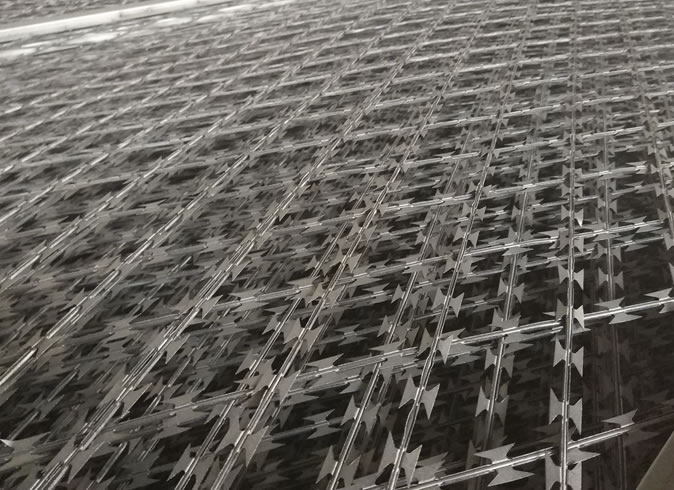

Anti-Climb Razor Mesh

Anti climb steel mesh welded panels of flat razor tape

Anti-climb steel mesh, supported by Y arms, mounted on security fencing panels:
Anti-Climb Welded Razor Mesh: 6' H x 5' L
Opening: Diamond hole, size: 2" x 6"
Material: Galvanised steel, stainless steel

Anti-Cut Through , Anti-Climb 4mm x 4mm 316L Wire Mesh

Anti Cut Through, Anti Climb Mesh Fence Panels

Anti-Cut Through , Anti-Climb 4mm x 4mm 316L Wire Mesh
Stainless Steel 316L 4 mm Horizontal Bar / Wire at 12-14 mm Centre Centre
Stainless Steel 316L 4 mm Vertical Bar / Wire at 76 mm Centre Centre

Material: Hot dipped galvanized; ss 316
Toggle Bolt ( Or Approved Equal ) Fixed To HC Planks

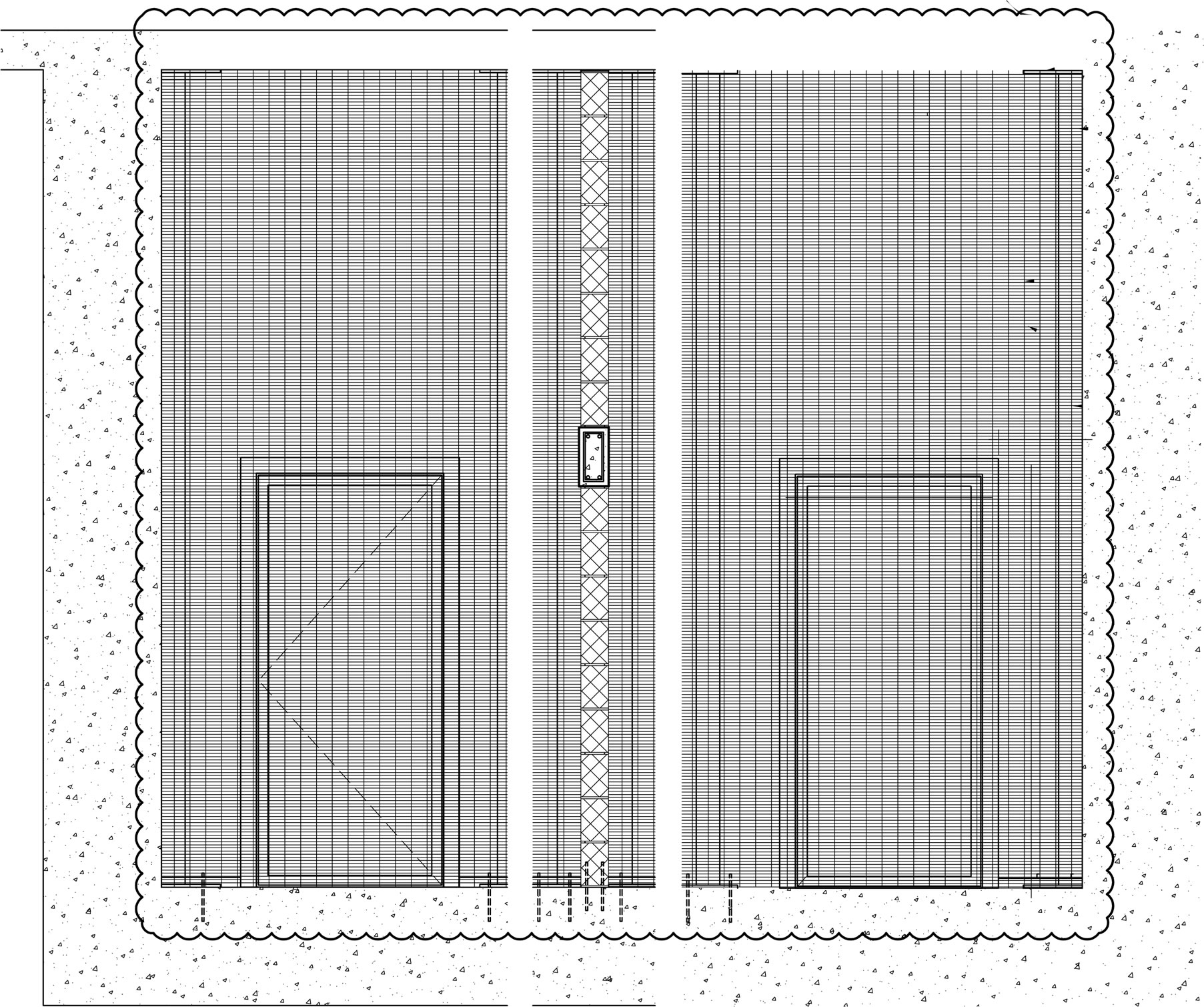

Plenum Security Bars
SSTL( GR-316L)
High Security Mesh
Anti - Intruder, Anti - Climb
Anti Cut Through Mesh.
With Secure Anti-tamper
SSTL Security Bolts.
4MM Diameter Vertical SSTL ( GR -316L ) Bars / Wires AT 76MM C-C
4MM Diameter Horizontal SSTL ( GR -316L ) Bars / Wires AT 12-14MM C-C
120*120*5 SSTL ( GR - 316L ) RHS, use epoxy concrete bolts ( SSTL GR - 316L ) to fix into wall and weld for anti tamper. Or approved equal method.
Access door with anti temper maximum security lock and hinges. 80*80 RHS SSTL gate post. 50*50 RHS SSTL door frame
300*300*15 SSTL ( GR 316L ) base plate for top and bottom.
Weld or clamp mesh with SSTL plate into angle
50*6 continuous SSTL ( GR - 316L ) angle along top and bottom of mesh, use epoxy concrete bolts to fix into slab and weld for anti tamper or approved equal method

High Security Anti-Climb Fence, Galvanized and Powder Coated, in Black

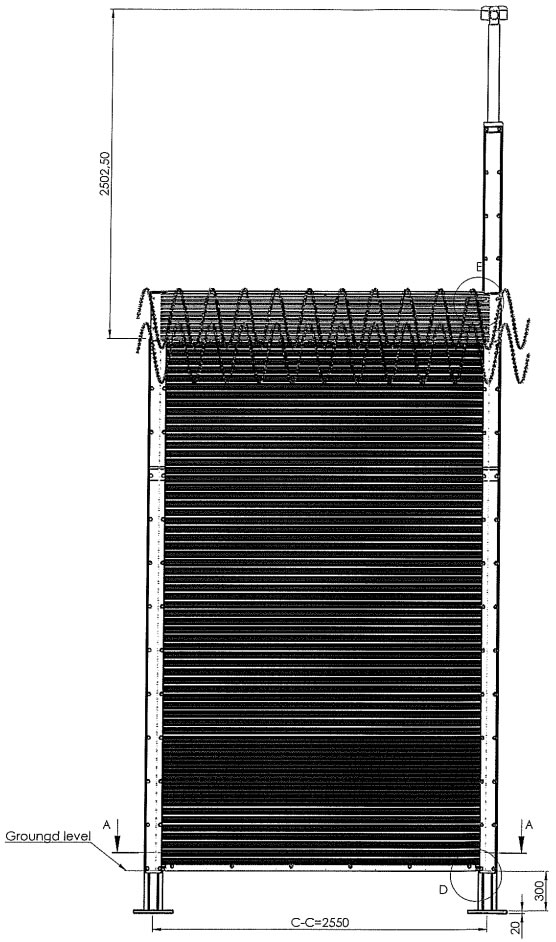

 Supply & delivery of High Security Anti-Climb Fence 358 Mesh with Concertina Razor Wire
Hot dipped gi 358 anti climb fence with razor wire
Hot Dip Galvanized Welded Anti Climb Panel Fence for Airport security, with post and bracket supported non climbing razor wire loops

Specifications:
Fence Length (with gates)
Fence Height: About 4.0 m (4.52 m with tilted segment from climbing over);
Mesh 358 size: Opening 76.2x12.7mm x wire 4mm;
Material: Mesh wire galvanized and polyester powder coated;
Non climbing top: Upper tilted segment color RAL9005, mounted with Concertina type security wire;

Fencing poles / posts:
Omega type profile, 140x135mm, metal pole thickness 4mm, RAL9005, galvanized and polyester powder coated, distance between the poles 2.55 meters.

Steel doors / gates & anti-climb panel fence 358
Technical Details:
- STEEL DOOR: A60 Door Class; Including frame; door opening dimension 1200 WD X 2300 HT; including panic device, lock set, door closer, threshold, door stop, stripping and all required accessories (at control room, electrical room & battery room)
[refer to attached full details of door specification & photos].
- STEEL DOOR; A60 Door Class; Doble Door; Including frame; door opening dimension 1000 WD X 2300 HT; including panic device, lock set, door closer, threshold, door stop, stripping and all required accessories (at lower deck level).
- DOOR CLOSER; Automatic Door Closer suitable for 750rnm x 1970mm Fire Class A-O steel door; with complete accessories.
- FENCE; Anti-Climb Fence 358; Low Carbon Steel Rod Fence material; Hot Galvanized; mesh aperture 75mm x 12.5mm; wire mesh 4mmØ at least
- RAZOR WIRE; Barbed Wire; galvanized; suitable for offshore

Fence Detail Designs

358 mesh panels, galvanized and black powder coated for offshore security fencing

No climbing non cutting mesh panels with concertina coils

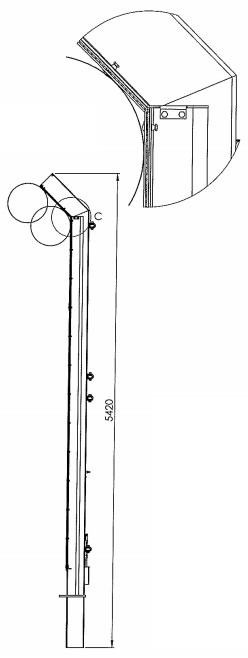

Post with Support Arm for Concertina Wire Coils above

Concertina Razor Wire Spirals Galvanized with Anti Corrosion Heavy Zinc Protection

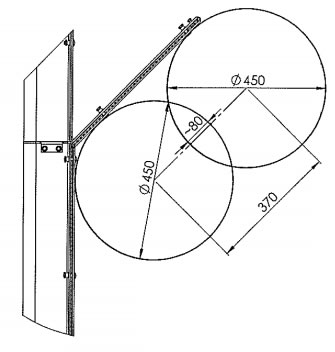

V crank above post for fixing concertinas

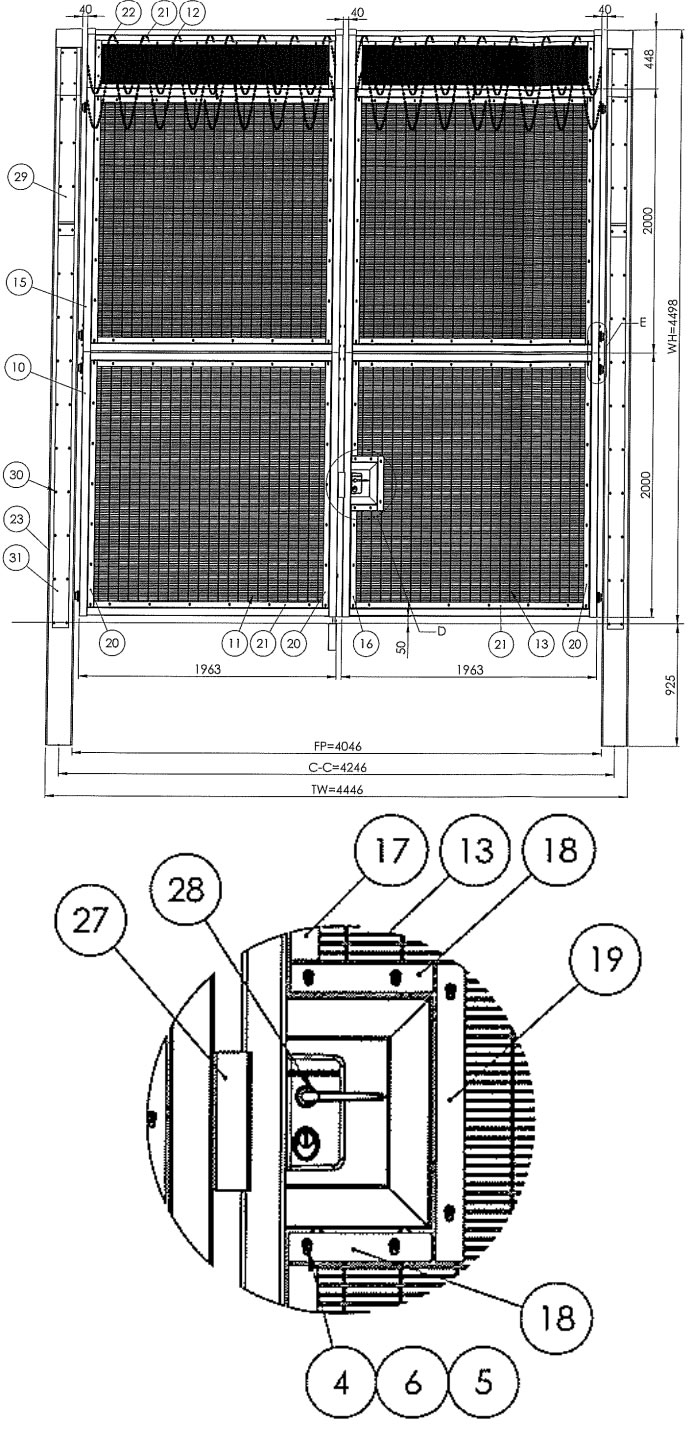

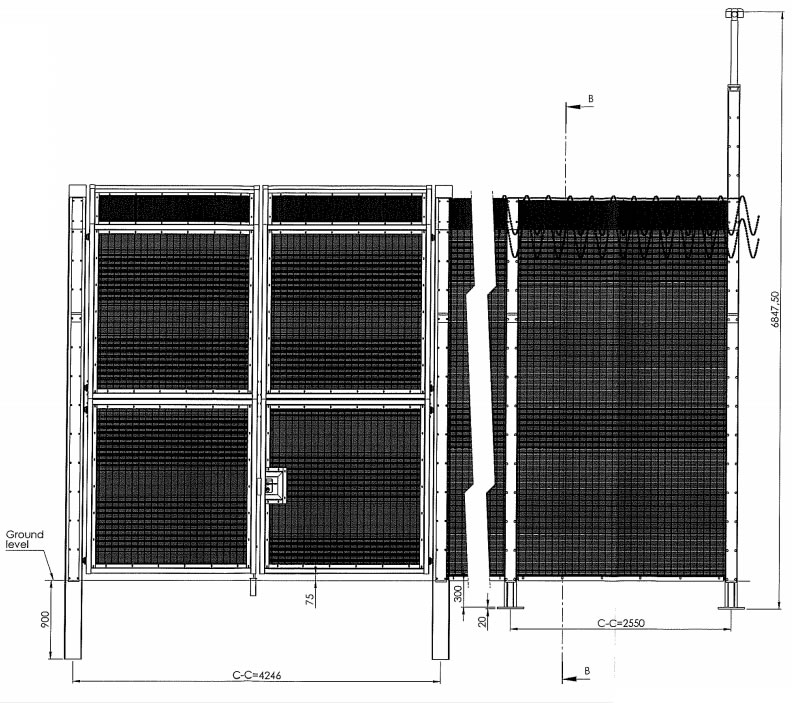

Fence gate with hot dipped galvanized and powder coated 358 mesh infill
