PVC Coated & Galvanized Welded Wire Panels Galv. Before Or After Welding

Common Welded Wire Mesh PanelsHeavy Galvanized Welded Mesh Panels

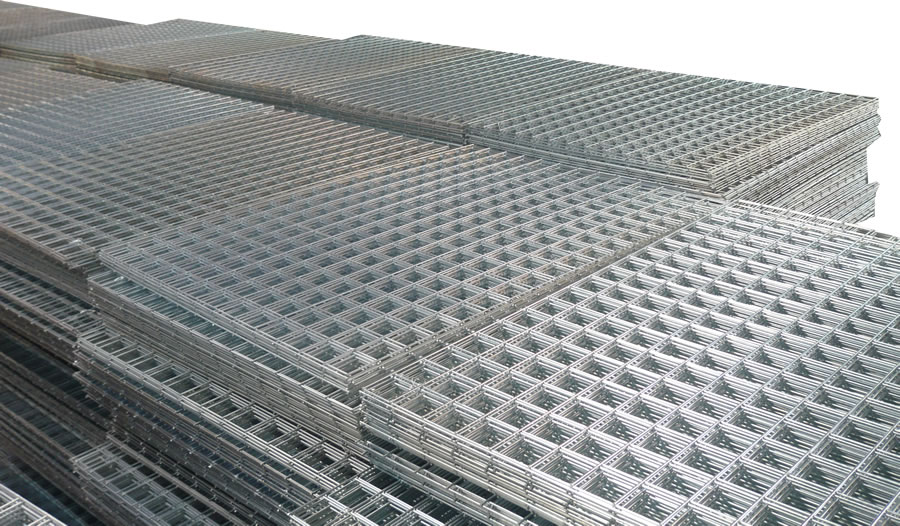

10cm*10cm Galvanized Mesh Panels for Construction Reinforcing Grid Sheet.

Welded Mesh Panels can be used for fencing, fabricating and construction structures. In flat mesh surface, curved or 3D panel types. Welded Wire Mesh Panels are also written as welded mesh panels or sheets, metal panels. It is made of superior quality steel wire, with flat even surface, firm structure, be used extensively in building, agriculture, industrial fencing.

Material: Low carbon steel wire, galvanized wire, stainless steel wire, aluminum-magnesium alloy wire

Surface Treatment:
Hot dipped galvanized after or before welding
Electro galvanized after or before welding
Pvc coated welded mesh panels
PVC+UV coated mesh panels

PVC Coating Thickness: 0.5mm -1.0mm (if need).

Classification:
PVC coated gavanized welded wire mesh fence panel;
100 x 100mm welded mesh panels;
Heavy Duty Metal Wire Rack Welded Panels;
Plastic Coated Welded Fence Panel;
3 D panels for construction.

Packing: Bare or pallet

Common Specification of Wire Mesh Panels:

Specification List with Holes and Wire Dia.
Opining Wire Diameter
Inch mm BWG mm
1"x1" 25mmx25mm 14#-11# 2.0mm-3mm
2"x1" 50mmx50mm 14#-8# 2.0mm-4mm
2"x2" 50mmx50mm 14#-8# 2.0mm-4mm
3"x2" 75mmx50mm 14#-6# 2.0mm-5mm
3"x3" 75mmx75mm 14#-6# 2.0mm-5mm
4"x2" 100mmx50mm 14#-4# 2.0mm-6mm
4"x4" 100mmx100mm 14#-4# 2.0mm-6mm
5"x5" 125mmx125mm 14#-4# 2.0mm-6mm
6"x6" 150mmx150mm 14#-4# 2.0mm-6mm
Note: Special specifications   can be customized.

Uses: Widely used in industry, agriculture, construction, transport, mining, Stadium,   lawn, aquaculture

Our hot sale welded wire mesh panels products

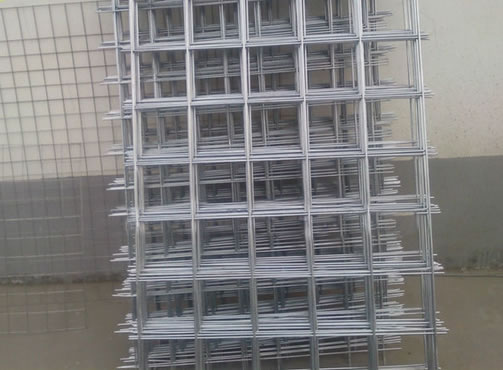

4" x 4" Galvanized welded wire mesh panel

100mm x 100mm Iron Fencing Panels
Opining Wire Diameter
Inch mm cm BWG mm
4"x4" 100mmx100mm 10 * 10 14#-4# 2.0mm-6mm

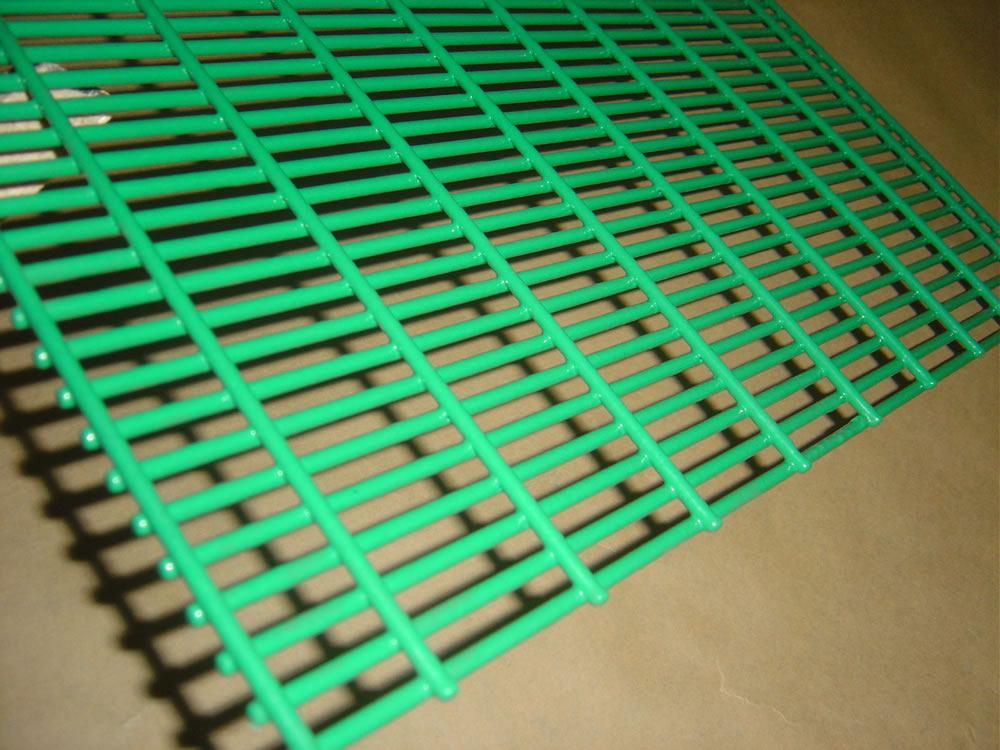

Green Color Coated Welded Fence Panel : 358 Security Mesh Panel

High Security 358 Prison Mesh Fencing

"358" comes from its measurements 3″ x 0.5″ x 8 Gauge, which equates to approx. 76.2mm x 12.7mm x 4mm in metric. It is a professional structure designed for high security fence barriers, combined with an steel framework, coated with heavily zinc or RAL color Powder coating. 358 welded mesh is used with razor wire or concertina coils to achieve maximum security.

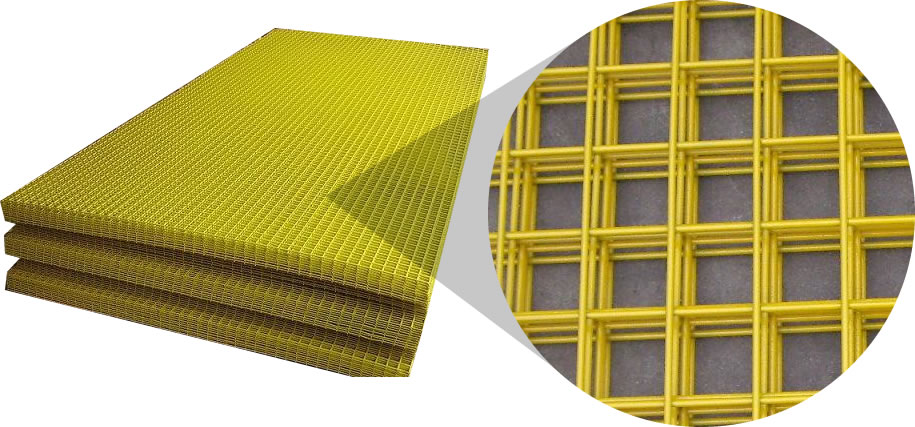

Yellow Color Painted 1/2 x 1/2 Welded Mesh Temporary Fence Panel for Crowd Control Barrier

Welded Mesh Fence Panel with Yellow Plastic Coating and Square Hole MeshSurface treatment: PVC coated, plastic soaked
Advantages of welded wire mesh:
1.simple structure beautiful and practical.
2.Strong welded point
3.Anti-erosion, Anti-aging, Anti-sunburn
4.competitive price
5. high quality

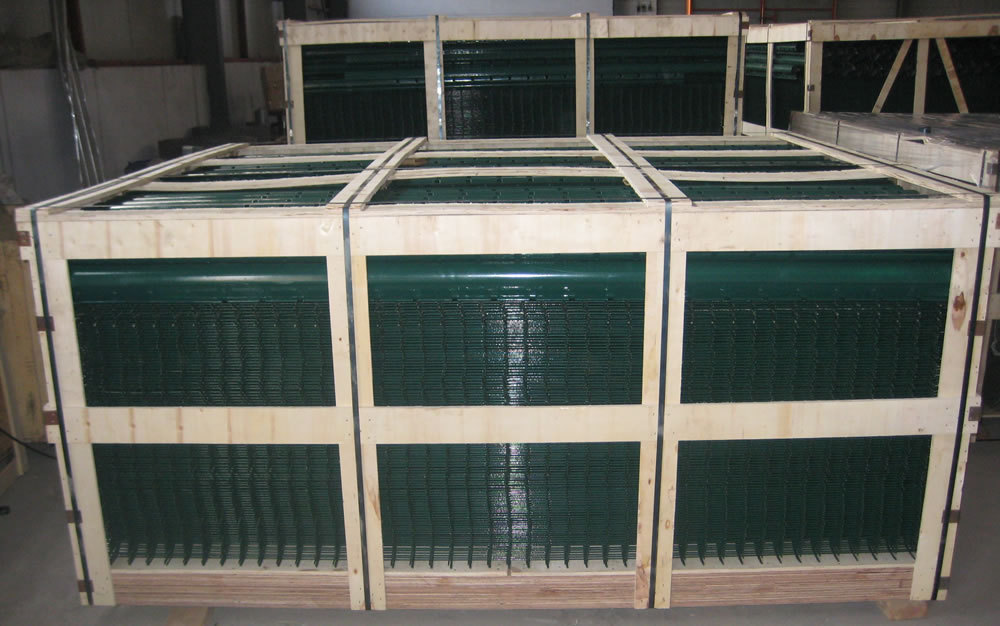

PVC Coated Welded Mesh Packed in Wooden Cases

Vinyl Coated Green Color Welded Mesh PanelsSurface Treatment: Hot dipped galvanized, electric galvanized then PVC coating or powder spary coating.
Dark Green (RAL6005) is the most popular for Using.

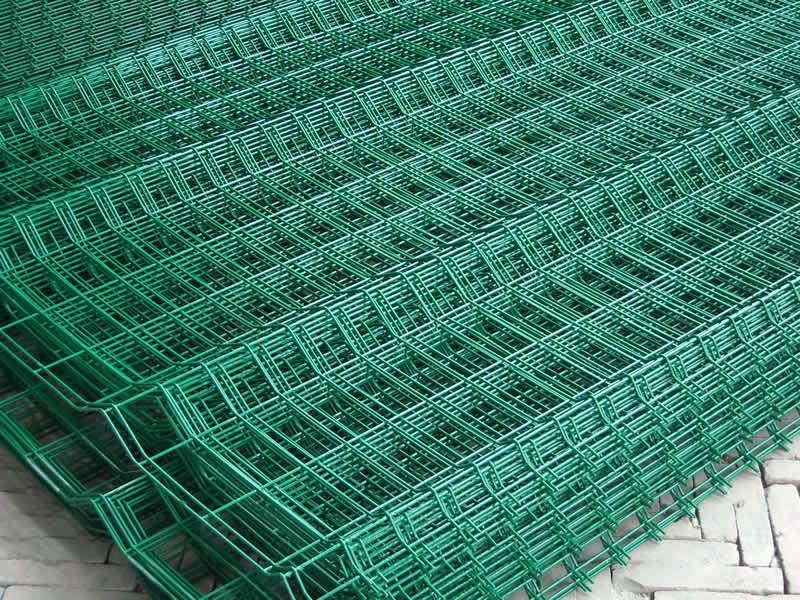

3D Bending Green Color Curved Wave Structure Fence Mesh for Expressway, Railway Security

3d welded fence panels/ curvy welded mesh fence panels provides strong, durable and flexible construction.

Material: high quality low carbon steel wire Q235, Q195, S235J2

Colors: Dark Green(RAL6005), blue(RAL5005), Dark(RAL9005), White(RAL9010) etc.

Welded Mesh Panel as Fence have bellow advantages:

cost effective
the welded mesh fence panels provide competitive price levels whilst retaining high quality, rigidity and performance.

High strength
The welded mesh fence panels are welded from strong steel wire, with rectangular mesh and horizontal reinforcements that give the panels a high strength.

Rapid installation
All components attractive fence with the other components which achieves professional and high quality fencing, installed with maximum effectiveness.

Long life
Galvanized and pvc coated of corrosion resistance for long life and low maintenance and attractive appearance.

Welded Wire Mesh Triangular Bending Fence Common Specification

Types Wire diameter Mesh opening Panel Length *width
Electronic / Hot dipped galvanizing 3mm, 4mm, 5mm, 6mm 50*100mm 50*150mm 50*200mm 1m*1.03m,1.2m*1.23m, 1.5m*1.53m,1.7m*1.73,2m*2.03mor as your request
Electronic galvanized+ PVC painted
Electronic galvanized+ PVC coated
Hot dipped galvanized+ PVC painted
Hot dipped galvanized+ PVC coated
bendings 2 / 3 / 4 bendings

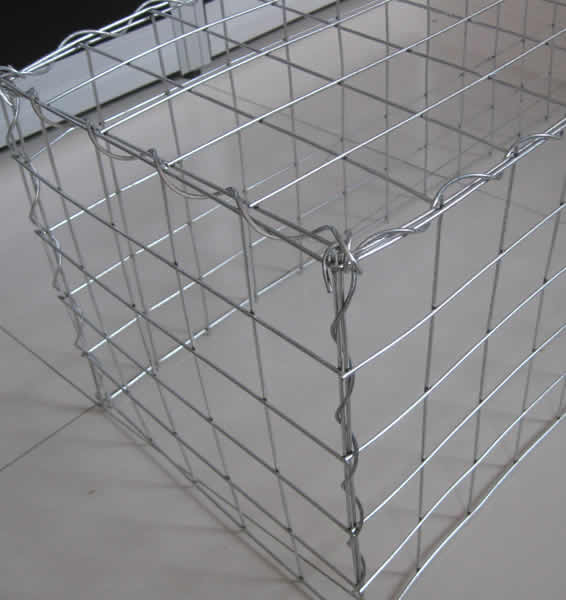

Welded Panel Cages and Containers

Wire Mesh Security Containers

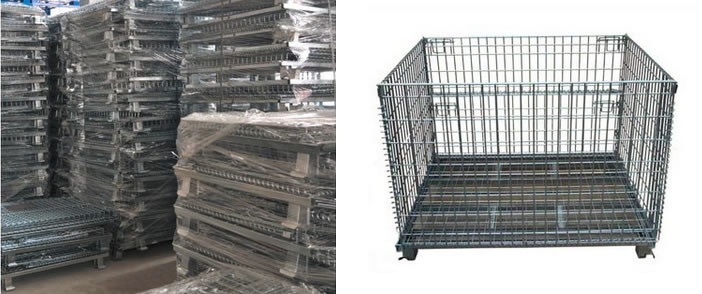

Welded Panels Fabricated Galvanized Steel Storage Cages and Baskets



Overall Size(mm)
Invner Size(mm)
W*D*H

Wire diameter(mm)
Grid(mm)
Maximm Static load(kgs)
800*600*640 750*570*500 6.0 50*50 700
6.0 50*100 600
5.0 50*100 500
1000*800*840 950*770*700 6.0 50*50 1200
6.0 50*100 800
6.4 50*50 1500
6.4 50*100 1000
6.0 100*100 600
5.0 50*50 600
5.0 50*100 500
1200*1000*890 1150*970*750 6.0 50*50 1500
6.0 50*100 1000
6.4 50*50 2000
6.4 50*100 1200
6.0 100*100 1000
5.0 50*50 1000
5.0 50*100 800
5.0 100*100 500
1200*800*840 1150*770*700 6.0 50*100 600
1200*800*890 1150*770*750 6.0 50*50 1000
800*500*540 750*470*400 6.0 50*50 600
6.0 50*100 400
5.0 25*25 800

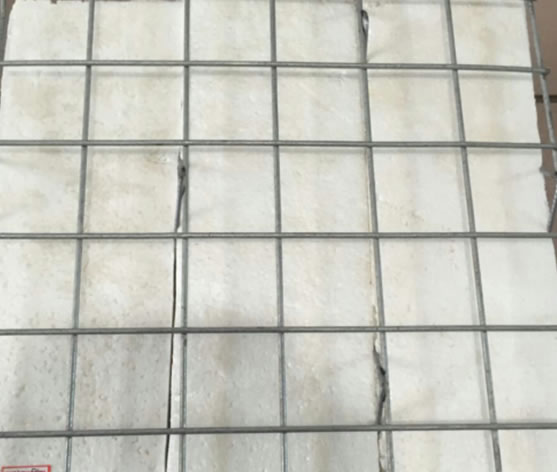

3D Wall Panels FOR FLOOR AND WALL CONSTRUCTION

Components of the installed panel include: a) Foam core for insulation. b)Wire mesh on inside and outside. c) Welded truss mesh of wire cross pieces. d) Sprayed concrete on both sides ("shotcrete").

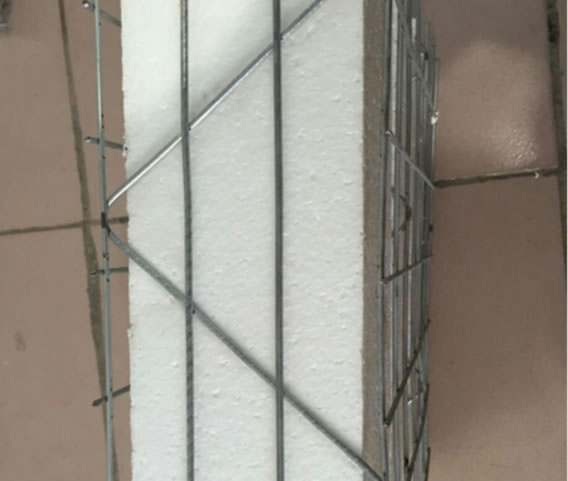

3D panel is a spatial structure consisting of a expanded polystyrene plate (usually called core), both sides of which are fixed welded wire fabrics made of high strength wire. The welded mesh fabric connected piercing polystyrene with truss of steel wire, welded to the welded fabric at an angle. It gives a rigidity spatial structure, and simultaneously prevents polystyrene core shifting.

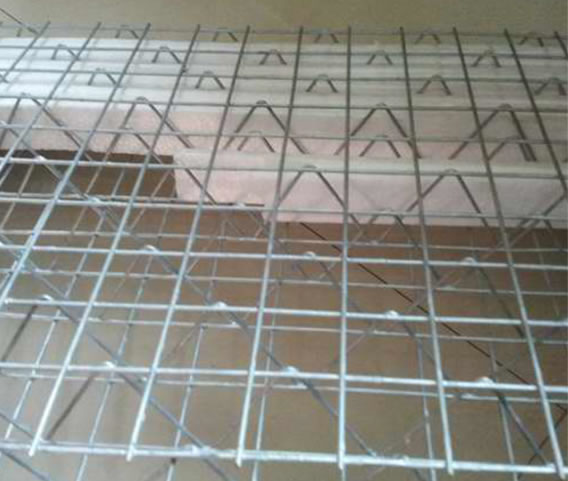

Welded Wire Fabric for Insulation Wall Building

3 Dimensional Wall Panel

Truss Mesh for Building Material

3D Wall Panels

Welded Steel Panel for Wall Construction

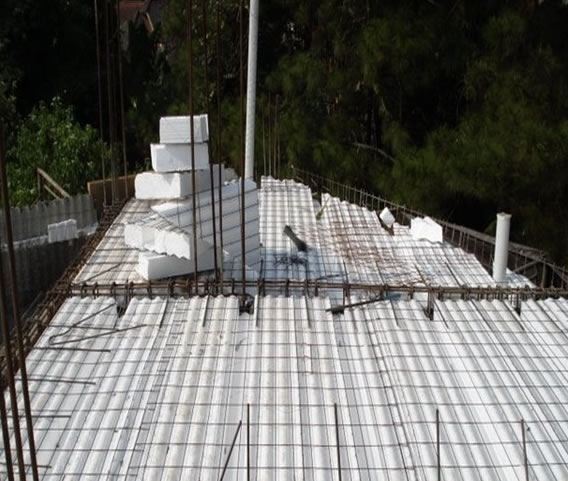

Eps 3D Wall Panels for Quick Floor and Wall Construction

Eps 3D Wall Panels
3D Panel dimensions:
Length - 2m, 3m, 6m.
Width - 1.00m, 1.15m, 1.20m.
Thickness 50mm (for walls), 100mm (for the internal load-bearing walls), 120mm (for exterior wall).
weight: 25kg (3 × 1.2m panel)
