Galvanised Welded Wire Mesh, Electro GI. or Hot Dipped Gaw.

Galvanized After Square Openings Electro Galvanised Welded Fencing PanelsSquare Openings Galvanised Welded Wire Cloth

Our galvanised welded mesh include electro galvanized wire and hot dipped welded wire mesh.  The hole shapes are all square or rectangular.

Hot Dipped Zinc Coated Welded Wire Mesh is made in accordance to English Standard normally in regard to the production and zinc coating. The finished welded mesh offer flat and uniform surface, firm structure, good integrity. It offers the most excellent anti-corrosion resistance among all the steel wire mesh products, it is also the most versatile wire mesh due to its wide application in different fields.

Electro Galvanized Steel Welded Mesh is made of low carbon steel wire through automatic digital controlled welding equipments. It is welded with plain steel wire, then electric galvanized after welding. The finished products are level and flat with sturdy structure.

Galvanised Welded Wire Widely Used For:
Building Wall Heating System as Plaster Mesh in construction (wire diameter: 0.5 - 0.8mm mesh:1.3cm);
Steel Structure System(wire diameter: 0.5-1mm mesh: 5 * 5 cm );
Welded ring for Corn Containing and Fencing;
General fencing;
Making of wire shelving, wire mesh cages, etc.

Standard roll length: 30m; width: 0.5m to 1.8m

Special sizes welded wire mesh is available at request

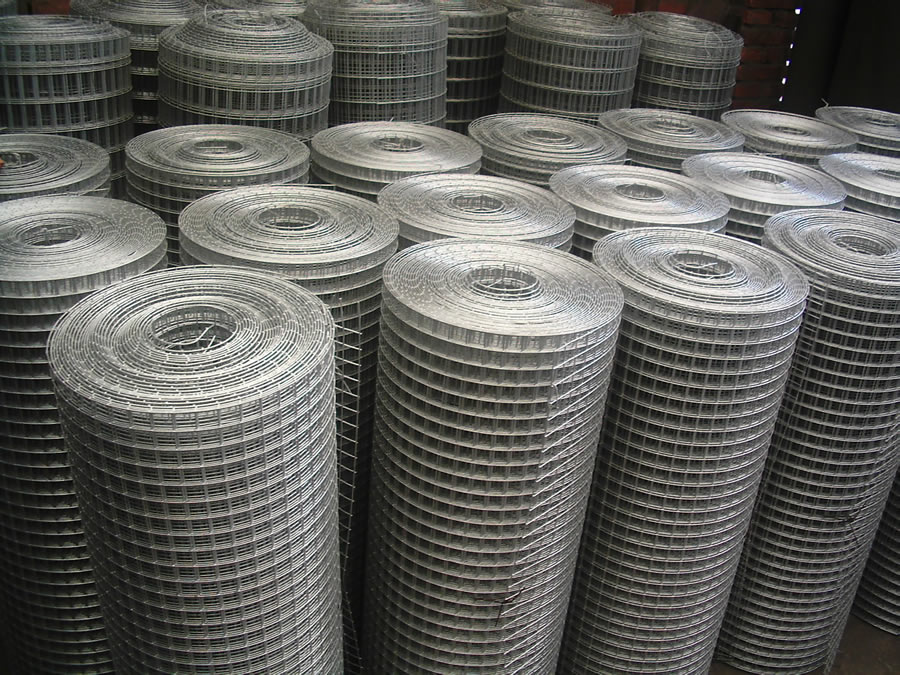

Electro Galvanized Iron Welded Mesh Gal. After

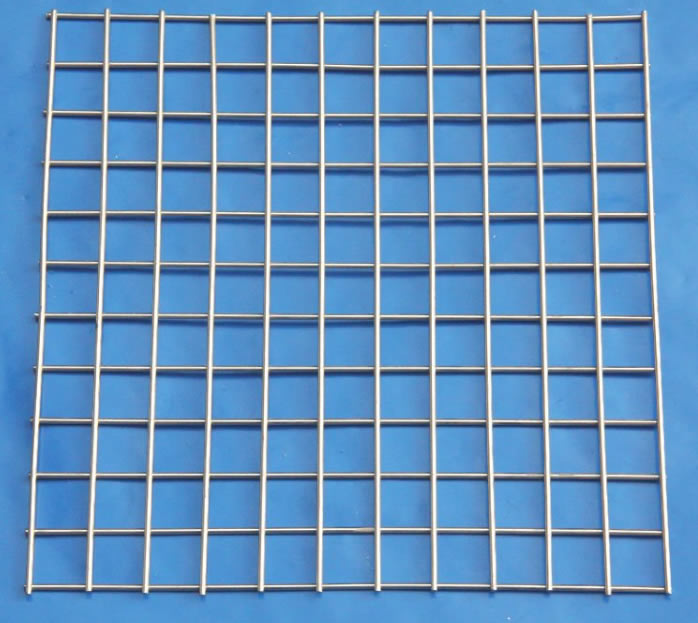

Electro Galvanized Welded Steel Mesh Panel for Plastering

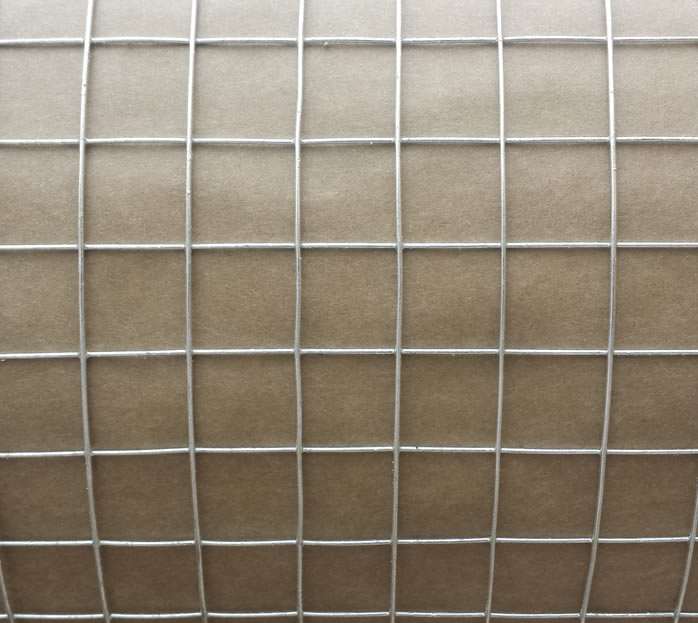

Hot Dipped Galv. Welded Wire Mesh

Rectangular Opening Galvanized Mesh Welded Before Gal. for Making of Mesh Containers



Surface Treatment: GAW & GBW

GAW and GBW are used for referring two processing technology of Welded Wire Mesh products.

GAW is simplified term of Galvanized After Weld, that is the welded panels are made with pre-galvanized wire then welded into square structures.

GBW Galvanized Before Weld means the opposite processing, that is welded with mild steel wire with no zinc coating and the galvanizing is done after the welded wire structure is formed.

PVC or vinyl coating also available for galvanized welded mesh.

Mesh Wire Diameter Width Length
1/4" X 1/4" 22#, 23#, 24# 18", 24", 30", 36", 48", 60'',72'' 50', 100', 150'
3/8" X 3/8" 19#, 20#, 21#, 22#
1/2" X 1/2" 16#, 17#, 18#, 19#, 20#, 21#, 22#, 23#
5/8" X 5/8" 18#, 19#, 20#, 21#
3/4" X 3/4" 16#, 17#, 18#, 19#, 20#, 21#
1" X 1/2" 16#, 17#, 18#, 19#, 20#
1" X 1" 14#, 15#, 16#, 17#, 18#, 19#, 20#, 21#
11/2" X 11/2" 14#, 15#, 16#, 17#, 18#, 19#
1" X 2" 14#, 15#, 16#
2" X 2" 12#, 13#, 14#, 15#, 16#
2'' X 4'' 12#, 13#, 14#, 15#, 16#
